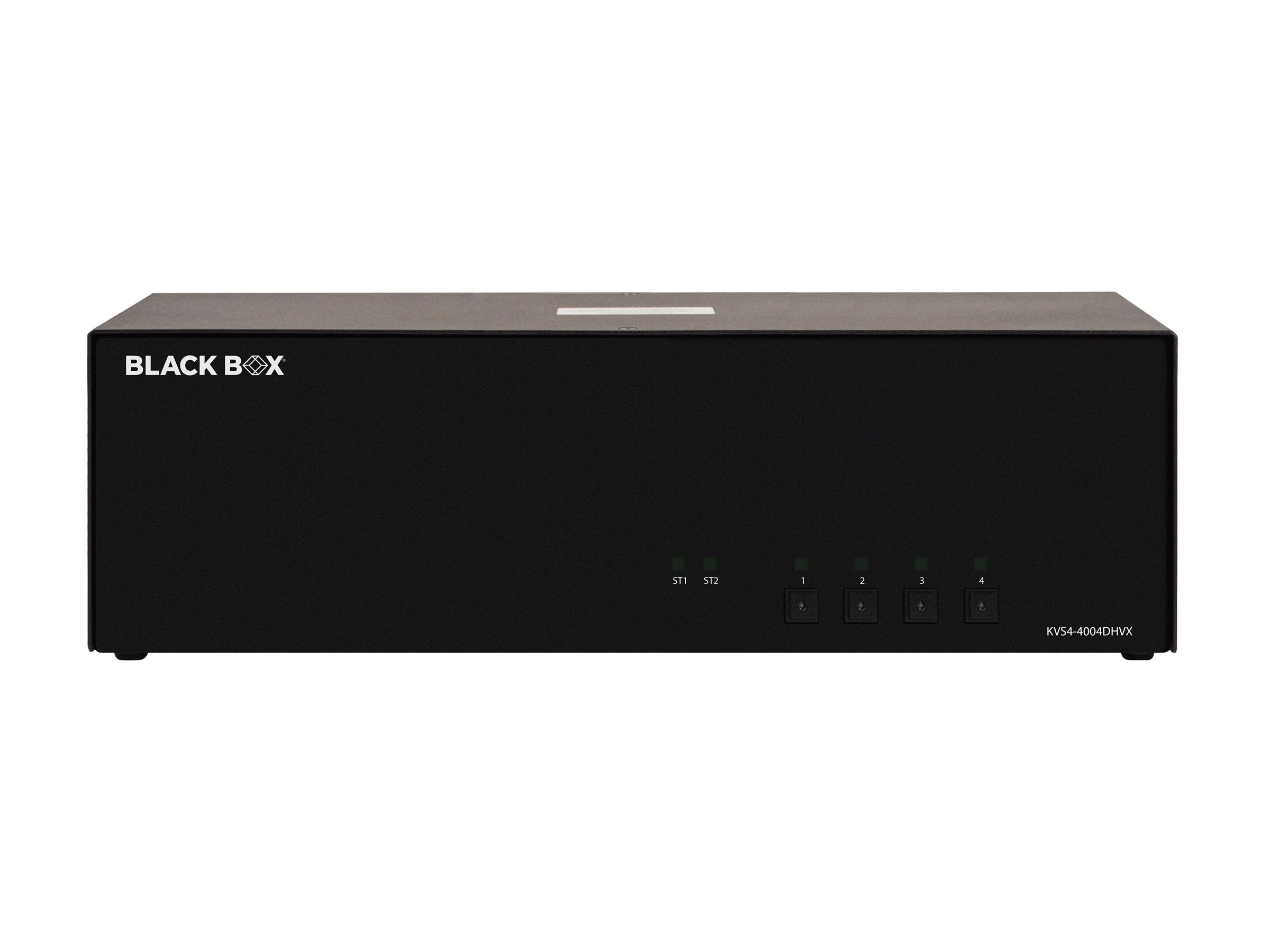

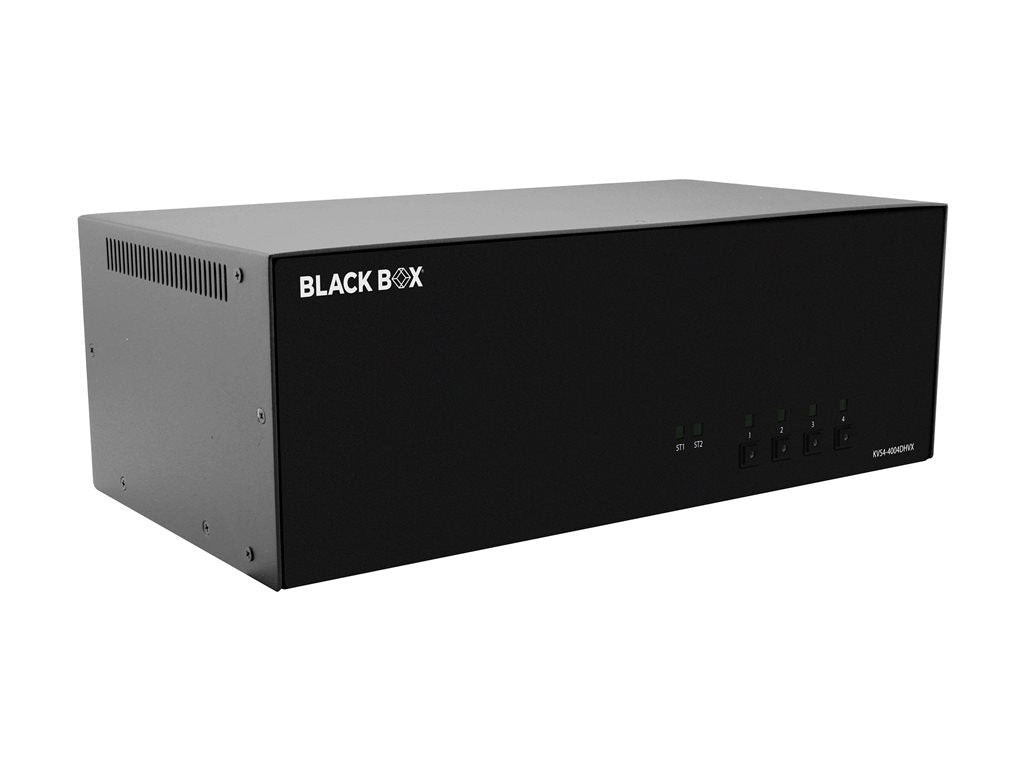

Black Box SECURE KVS4-4004DHVX - KVM / audio switch - NIAP 4.0 certified, quad-monitor, DVI, HDMI, DisplayPort, CAC - 4 x KVM / audio - 1 local user - desktop - TAA Compliant - with 3 years Double Diamond Warranty
- Versatile connectivity options
This KVM switch provides multiple connection types including DVI, HDMI, and DisplayPort, making it adaptable to different setups. - High-performance video capabilities
With maximum resolution support of 3840 x 2160, users can experience clear and detailed visuals across their displays. - Compliant with security standards
Having been certified to NIAP PP 4.0, this device meets rigorous standards for secure operations. - Robust temperature tolerance
Operates efficiently from 0°C to 40°C, ensuring stability in various environments while withstanding storage temperatures from -20°C to 60°C. - Enhanced audio and video switching
Features four KVM/audio ports for straightforward connectivity and management of multiple devices.
Control 8 DP, 4 HDMI, and 4 DVI-I computers from a single workplace using 1 set of keyboard and mouse and 2 DP, 1 HDMI, 1 DVI-I, and CAC Guard sensitive data in defense applications secure control rooms server operations corporate educational medical banking insurance transit or industrial applications and more. This switch uses mechanical electrical and optical signal isolation to prevent hacking and data leakage. Control KVM (Keyboard Video and Mouse) operation on up to 8 DisplayPort 4 HDMI and 4 DVI-I computers plus analog audio using just 1 set of keyboard and mouse 2 DisplayPort 1 HDMI 1 DVI-I displays and analog audio. NOTEThe switches support HDMI 1.4 and DisplayPort 1.2. Complies with NIAP Protection Profile for Peripheral Sharing Device Version 4.0 The switches are tested and certified under the USA scheme for NIAP Protection Profile 4.0. Front-Panel Buttons Securely switch between sources. Maximum Security Inverted signals control data relays to guard connections against outside intrusion. Each port has an isolated data channel and each unit uses non-reprogrammable ROM with no data leakage between ports. Isolated connections also prevent data leaks between secure ports and the outside world when accessing classified and public networks over the internet. Secure EDID Learn and Video Emulation The switch emulates a keyboard and mouse for each attached computer via a USB cable. Selected and non-selected computers maintain a connection with the unit's keyboard-mouse emulation controllers allowing for ultra-fast switching and restricting the discovery of newly connected peripherals during switching. Emulation also prevents the direct connection between peripherals and connected computers. Tamperproof Seals Built-in tamperproof seals and a long-life internal anti-tamper battery keep devices secure. Optional CAC Port Add a Common Access Card (CAC) reader at point-of-sale in retail or for access in other industries.
- Certified for NIAP Protection Profile for Peripheral Sharing Device Version 4.0
- HDMI/DisplayPort FlexPort Technology allows Single-Monitor or Dual-Monitor HDMI/DisplayPort video interfaces, USB HID, and stereo audio
- Made in the USA, TAA Compliant
- Tested and certified under the USA scheme
- External power supply with locking connector
- Supports CAC Devices
- Supports HDMI or DisplayPort video up to 3840 x 2160 at 60 Hz (Dual-Link), USB HID, and stereo audio
What's in the Box:
- (1) Secure KVM Switch
- (1) 12 VDC Wallmount Supply (ICP36-120-3000) with US, EU, UK, and AU adapter clips
- (1) Set of 4 rubber feet (already be attached)
- (1) Quick Start Guide
